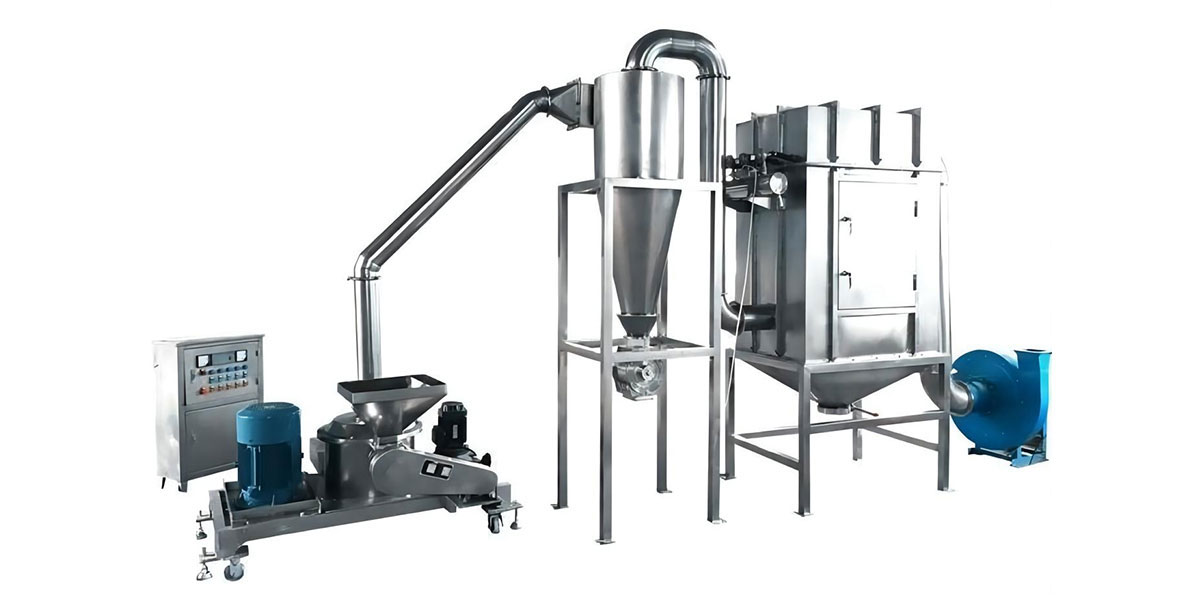

The pulverizer/grinder adopts a new tool structure, which overcomes the characteristics of low output and coarse particles, and is energy-saving and environmentally friendly. Wide range of application: PVC, PE, PS, PA, PC and other materials are ground into 20-80 mesh powder. .It is completely sealed during the grinding process, without dust pollution; the cooling system adopts the combination of air and water for cooling. Fully automatic continuous operation, closed design, using its own air volume and air pressure to collect the prepared powder without dust leakage. It is easy to install and maintain, and it can be cleaned by opening the door cover.
|
Model |
LMP-500 |
LMP-600 |
LMP-800 |
|
Powder chamber diameter |
Φ500mm |
Φ600mm |
Φ800mm |
|
Number of rotors |
Group 1 |
Group 1 |
Group 1 |
|
Spindle speed |
3700 |
3500 |
3200 |
|
Power |
37 |
55 |
75 |
|
Yield |
150-280 |
200-550 |
450-850 |
|
Fineness |
15-120 mesh |
15-120 mesh |
15-120 mesh |
|
Dimensions |
60001550x3000mm |
6100><1650x3200mm |
6600x1750x3400mm |
